Transforming Pharmaceutical Quality with GAMP® AI Guardrails

This article presents a novel approach to pharmaceutical AI governance by operationalizing principles from the ISPE GAMP^® Artificial Intelligence Guide as input and output guardrails within a hybrid AI architecture for RCA and CAPA life-cycle management.1 We propose a risk-based guardrail framework that ensures data fitness for purpose, applies quality risk management principles, and maintains regulatory compliance, at the same time enabling AI-augmented quality systems. By establishing these safeguards, organizations can harness AI’s power and protect product quality, patient safety, and data integrity.

Background

The life sciences industry stands at a critical juncture. Traditional approaches to RCA and CAPA management—essential pillars of pharmaceutical quality systems mandated by International Council for Harmonisation (ICH) Q102—can require weeks or months to complete, delaying problem resolution and potentially threatening product quality and patient safety. Meanwhile, AI technologies have demonstrated remarkable capabilities in pattern recognition, causal inference, and predictive analytics across multiple industries.3 These abilities help yield quicker insights and critical quality attributes (CQAs). AI-driven RCA systems have proved able to provide detailed analyses of investigations with RCA, and ultimately recommendations for CAPAs. Not only does AI provide valuable insights within quality gaps, it may also reduce diagnostic time by nearly 70% in comparable domains, at the same time improving accuracy and complementing human expertise.4

Already demonstrated in 2026 are several agentic AI tools that have been developed with use cases focusing specifically on RCA, investigations, and CAPAs. The results have quickly shown industry that these AI tools deliver better quality insights into human hands, and they can also make traditional quality processes more efficient (see Figure 1).

The ISPE GAMP^® Artificial Intelligence Guide represents the pharmaceutical industry’s most comprehensive effort to address this gap, providing principles for developing, validating, and maintaining AI systems in regulated environments.1 However, translating these principles into operational safeguards requires practical frameworks that pharmaceutical organizations can implement.

This article addresses that need by proposing a guardrail architecture derived from GAMP^® AI principles, specifically designed for hybrid AI systems supporting RCA and CAPA management. These guardrails function as checkpoints that verify data quality, assess risk, ensure regulatory compliance, and prevent unsafe AI outputs before they affect quality decisions. By using a framework from GAMP^® AI guidance as input and output controls, industry experts give pharmaceutical organizations a pathway to harness AI capabilities and maintain the rigor and oversight essential to GxP operations.

Challenges in Traditional RCA and CAPA Management

Time, Resource, and Expertise Constraints

Traditional RCA investigations within the life sciences industry can be cumbersome and lengthy.4 Using AI tools in the quality environment helps determine RCA, perform quick investigations, and compare current quality gaps with historical quality data. These tools help the quality professional to achieve better quality outcomes and have time to focus on other tasks. The quality of RCA outcomes depends heavily on investigator training, experience, and domain knowledge. Traditional methodologies—including the 5 Whys, Ishikawa diagrams, and fault tree analysis—provide structural frameworks but rely fundamentally on human judgment to identify relevant data, formulate hypotheses, and determine causation.4 Although these methodologies are essential for quality processes, they can lead people to reason illogically or make reasoning mistakes because the human brain is bombarded with a constant, overwhelming amount of data.

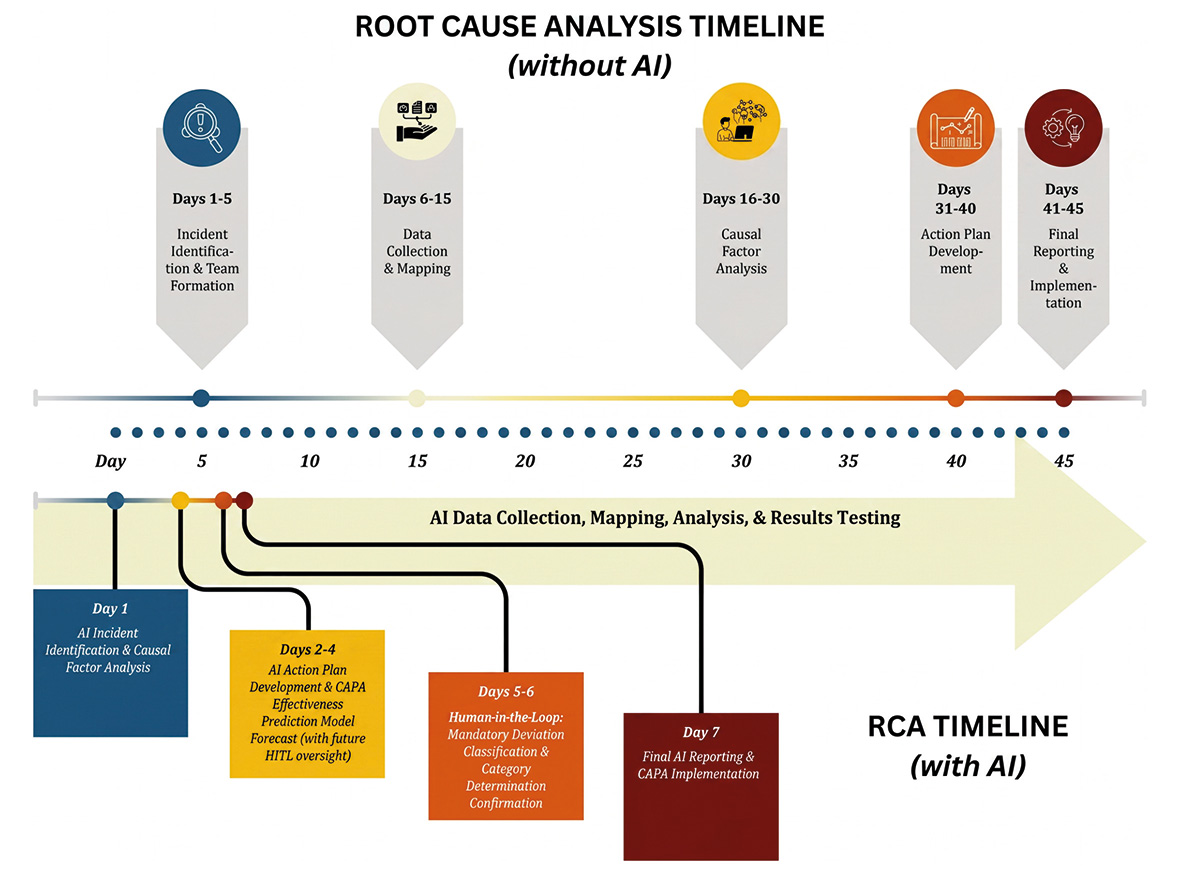

Figure 1: Traditional RCA and CAPA process timeline compared with AI-augmented process with guardrails.


Data Fragmentation and Analytical Limitations

Pharmaceutical RCA investigations require synthesizing data from many disparate systems, such as quality management systems (QMSs); manufacturing execution systems (MESs); laboratory information management systems (LIMs); change control databases; training records; standard operating procedures (SOPs); and regulations. Quality professionals must manually query each system, export data, and identify correlations—a manual process that can leave room for human error—overlooking critical patterns or analyzing data incompletely.4

CAPA Effectiveness Gaps

Often when investigations identify root causes, CAPA effectiveness remains inconsistent because of incomplete identification of the full root cause. CAPA actions are inadequately scoped given improper RCA. This can lead to gaps between CAPAs and can erode effectiveness. These challenges demonstrate that traditional approaches, although standardized, have limitations that AI systems could further address—provided that appropriate safeguards, quality oversight, and proper training and validation models ensure AI outputs meet GxP and quality requirements.

Hybrid AI Architecture for RCA and CAPA Management

Before addressing how guardrails ensure safe and compliant AI operation, we’ll give a brief example of a hybrid architecture (with various tools) that these guardrails would protect (see Figure 2). This architecture integrates complementary AI technologies, each addressing specific functional requirements.

Large Language Models (LLMs)

These provide natural language interfaces most commonly used by quality professionals. Domain-specific models such as Bi-oBERT5 or SciBERT,6 fine-tuned on pharmaceutical quality documentation, enable contextual understanding of technical content while maintaining on-premises deployment for data sovereignty.

Knowledge Graphs

These graphs (for aiding quality professionals in historical pattern recognition) structure relationships between quality events, equipment, materials, processes, and historical investigations using graph databases such as Neo4j.7 This architecture enables causal relationship mapping; historical pattern recognition across seemingly unrelated events; multihop reasoning that connects events through intermediate relationships; and explainable inference pathways suitable for regulatory justification.

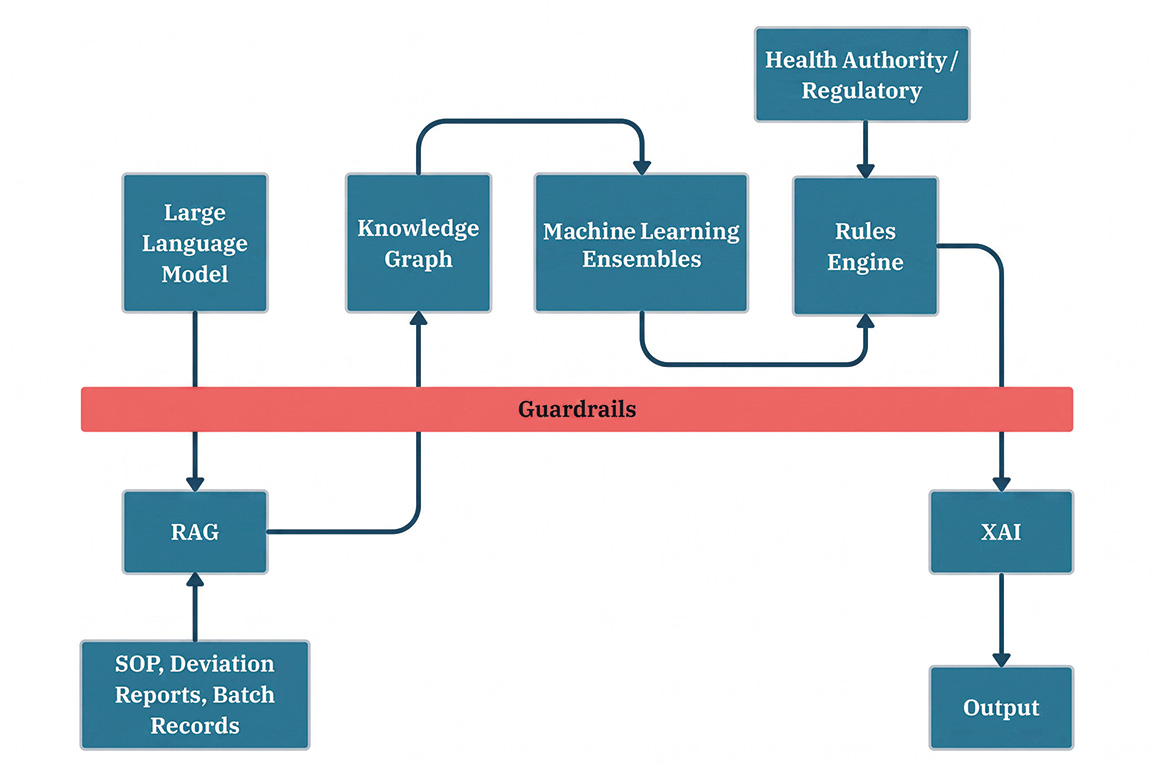

Figure 2: Hybrid AI architecture with bidirectional data flow integration points. Input–output guardrails act as essential safety layers that constrain model behavior, ensuring AI systems remain ethical, secure, and accurate by filtering inputs and validating outputs.


Machine Learning Ensembles

These deliver predictive and classification capabilities through specialized models: anomaly detection models (isolation forest, autoencoders, long short-term memory networks) identifying deviations from normal process behavior; classification models (random forest, XGBoost, graph neutral networks) categorizing deviations and predicting root-cause categories; CAPA effectiveness prediction models forecasting intervention success; and temporal sequence models analyzing time-series data to detect process drift.

Rules-Based Systems

These systems enforce nonnegotiable regulatory and business requirements that cannot be subject to probabilistic interpretation, including regulatory compliance rules based on US Food and Drug Administration (FDA), European Union Good Manufacturing Process (EU GMP), and ICH guidelines; data integrity requirements aligned with FDA 21 CFR Part 11;8 quality risk management (QRM) protocols following ICH Q9;9 and organization-specific business logic.

Retrieval-Augmented Generation (RAG)

This addresses LLM hallucination risks by grounding outputs in retrieved information from validated sources. Vector databases store embedded representations of SOPs, historical investigations, CAPA databases, regulatory guidance, and scientific literature, enabling a semantic similarity search that provides factual context for LLM generation with verifiable citations. 10

Explainable AI (XAI) Layer

This provides transparency into AI decision-making through model-agnostic explanation methods (local interpretable model-agnostic explanations, or LIME, and Shapley additive explanations, or SHAP), attention visualization for transformer models, confidence scoring for predictions, and decision pathway documentation linking outputs to specific data inputs and rules.

However, technical capability alone cannot ensure GxP compliance. The architecture requires governance mechanisms that verify data quality, assess risk, enforce regulatory requirements, and prevent unsafe outputs. This is where GAMP^® AI-derived guardrails become essential.

GAMP^® AI Guardrails Framework: Putting Principles into Practice

The ISPE GAMP^® AI Guide establishes foundational principles for AI in GxP environments but does not prescribe specific ways to apply them. We propose using these principles as input and output guardrails—systematic checkpoints that verify compliance with GAMP^® AI requirements before AI processing (input) and before presenting results to users (output).

Input Guardrails: Ensuring Data Fitness of Purpose

The ISPE GAMP^® AI Guide emphasizes that data must be “fit for purpose” in its context of use, meeting four essential properties: reliability, relevance, representativeness, and abundance.1 Input guardrails operationalize these properties as verification mechanisms before data enters AI processing.

Defining Data Fitness Properties in Pharmaceutical Quality Context

Reliability

Reliability describes the extent to which real-world relationships are adequately captured in data. In pharmaceutical quality, reliability requires:

• Validated data sources with established accuracy and precision
• Complete audit trails demonstrating data integrity per FDA 21 CFR Part 1111
• Traceability to calibrated instruments and qualified equipment
• Absence of data manipulation or unauthorized modifications

Relevance

Relevance ensures data is meaningful for the intended use, distinguishing it from unrelated information. For RCA or CAPA applications, relevance requires:

• Temporal alignment (e.g., data from relevant time periods, not obsolete historical data reflecting outdated processes)
• Process alignment (e.g., data from applicable manufacturing areas, product types, equipment classes)
• Parameter alignment (e.g., measurements of variables affecting the deviation under investigation)
• Exclusion of confounding or extraneous data that could mislead causal inference

Representativeness

Representativeness ensures data reflects characteristics of intended use and sufficiently mirrors real-world situations, particularly covering relevant population subsets.7 In pharmaceutical manufacturing, representativeness requires:

• Coverage across process variability (e.g., normal operating ranges, edge cases, known failure modes)
• Equipment state diversity (e.g., qualified, preventive maintenance cycles, post modification)
• Material variability (e.g., multiple lots, suppliers where applicable, storage conditions)
• Temporal coverage (e.g., seasonal variations, shift patterns, personnel changes where relevant)

Abundance

Abundance ensures data volume is commensurate with model w and context of use. Generally, more relevant data leads to more meaningful results and model robustness.7 For pharmaceutical AI applications:

• Minimum sample sizes for statistical significance (typically for parametric analysis, more for complex machine learning models)
• Sufficient examples of each root-cause category for classification model training (minimum 100–500 instances per category, depending on complexity)
• Adequate representation of rare but critical events (e.g., contamination, sterility failures)
• Balance between majority and minority classes to prevent model bias

Input Guardrail Verification Framework

Input guardrails assess data fitness through a systematic scoring framework that combines automated checks with risk-based human review triggers (see Figure 3).

Automated data quality scoring

Each data source receives a fitness score (0–100) calculated from weighted subscores across the four properties:

Fitness Score = (w₁ × Reliability Score) + (w₂ × Relevance Score) + (w₃ × Representativeness Score) + (w₄ × Abundance Score)

where: w₁ + w₂ + w₃ + w₄ = 1.0; default weights: w₁=0.35, w₂=0.30, w₃=0.20, w₄=0.15; and reliability and relevance weighted higher due to GxP criticality.

Subscores are calculated through specific checks:

• Reliability score: Validated source (+25), complete audit trail (+25), calibration current (+25), no data integrity flags (+25)
• Relevance score: Temporal match to investigation period (+35), process or area alignment (+35), parameter applicability (+30)
• Representativeness score: Covers ≥ 80% of process variability (+35), includes edge cases (+35), accounts for known modes (+30)
• Abundance score: Meets minimum sample size (+40), balanced class distribution (+30), and rare event coverage (+30)
• Triggers: Sterility failures, endotoxin excursions, potency failures, visible particulates in injectables, and critical equipment failures affecting multiple batches
• Data fitness requirement: Score ≥ 90% only highest quality data acceptable for critical decisions
• Processing: Immediate escalation to quality leadership and subject matter experts (SMEs)
• Timeline implication: Investigation initiation within 24 to 48 hours, preliminary findings within five to seven days
• Human oversight: Mandatory SME review of all AI-generated hypotheses before investigation proceeds
• Regulatory: Potential reportable event; regulatory notification assessment required

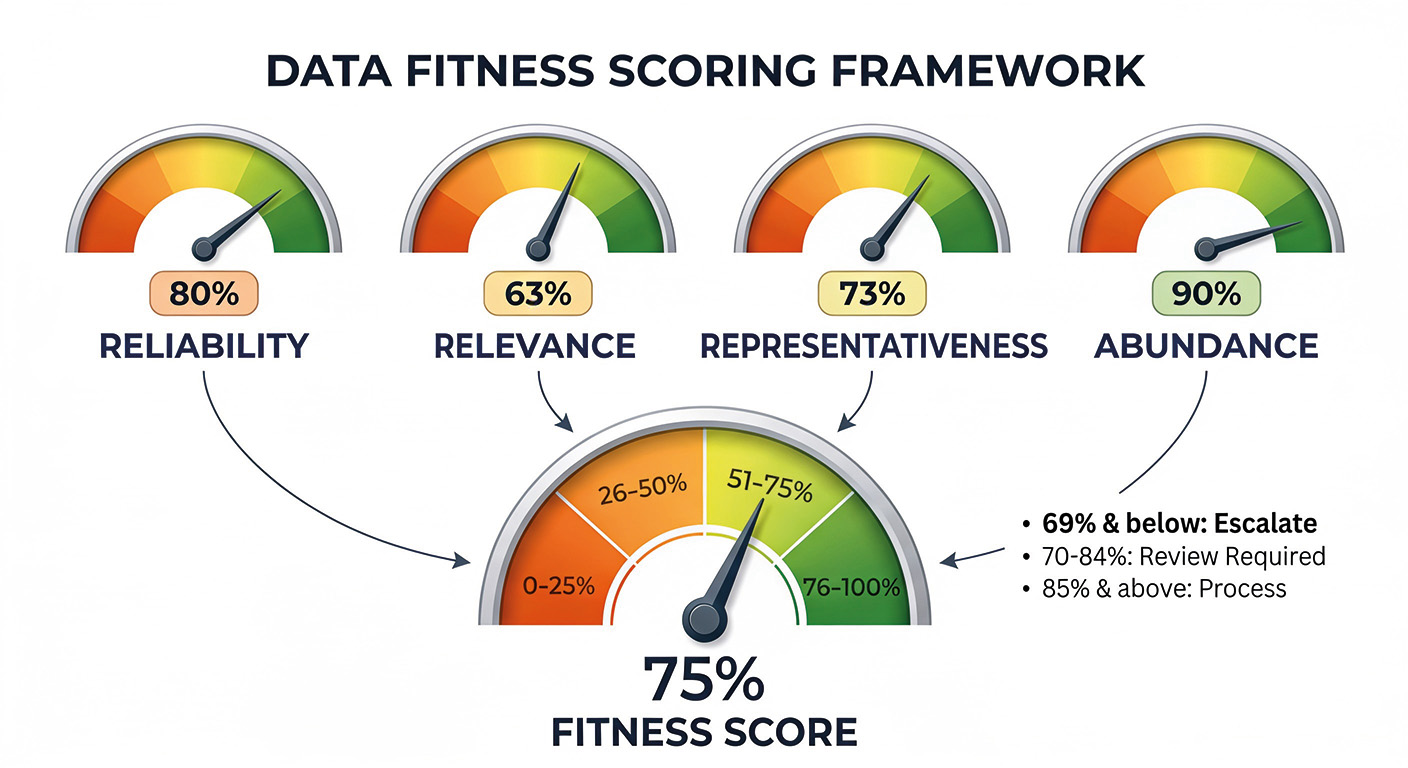

Figure 3: Dashboard-style visualization showing the data fitness scoring framework with four property gauges feeding into an overall fitness score meter.


For an input guardrail decision tree, starting with the identification of a deviation, the calculated data fitness score delineates the appropriate categorization pathway (see Figure 4). Each pathway has its own escalation requirements, timeline expectations, and oversight levels. Those deviations with a calculated data fitness score below 60 will automatically disable AI processing, trigger manual investigation methods, and require an RCA of why data quality is insufficient.

• Category 1 – Act fast: Serious problems like failed equipment or recurring issues that weren’t fixed properly. These get flagged immediately to leadership, require human signoff before any corrective action is taken, and must be investigated within a week.
• Category 2 – Watch closely: Minor issues like small process slip-ups or paperwork errors that didn’t affect the product. AI helps investigate, but a human still reviews the findings before anything is approved—think of it as a routine check with a safety net.
• Category 3 – Proceed with caution: Unclear or unusual situations where the AI isn’t confident enough to lead the investigation on its own. A human decides whether to use AI assistance at all or just handle it the old-fashioned way.
• Below threshold – Stop and fix the data first: The data is too incomplete or unreliable for AI to touch. Everything goes manual, and the team has to figure out why the data was bad before any real investigation can begin.

QRM integration

The categorization framework operationalizes ICH Q9 principles12^, 13 by implementing risk-based decision-making using three risk assessment dimensions: 1) severity (patient safety impact, i.e., critical, major, moderate, minor); 2) occurrence (likelihood based on historical frequency); and 3) detection (ability to identify before patient impact, i.e., current controls effectiveness).

Risk priority calculations are based on the risk priority number and the following equation, in which each dimension is scored 1–10 per ICH Q9 guidelines:

Risk Priority Number (RPN) = Severity × Occurrence × Detection

The RPN is then tied to categories:

• RPN ≥ 100: Category 0 (regardless of data fitness)
• RPN 50–99: Category 1 (with fitness ≥ 80)
• RPN 20–49: Category 2 (with fitness ≥ 70)
• RPN < 20: Category 3 (with fitness ≥ 60)

This integration ensures that high patient risk always triggers maximum oversight, even when AI confidence is high. Conversely, low-risk deviations with excellent data fitness can proceed with AI assistance and lighter oversight, optimizing resource allocation.

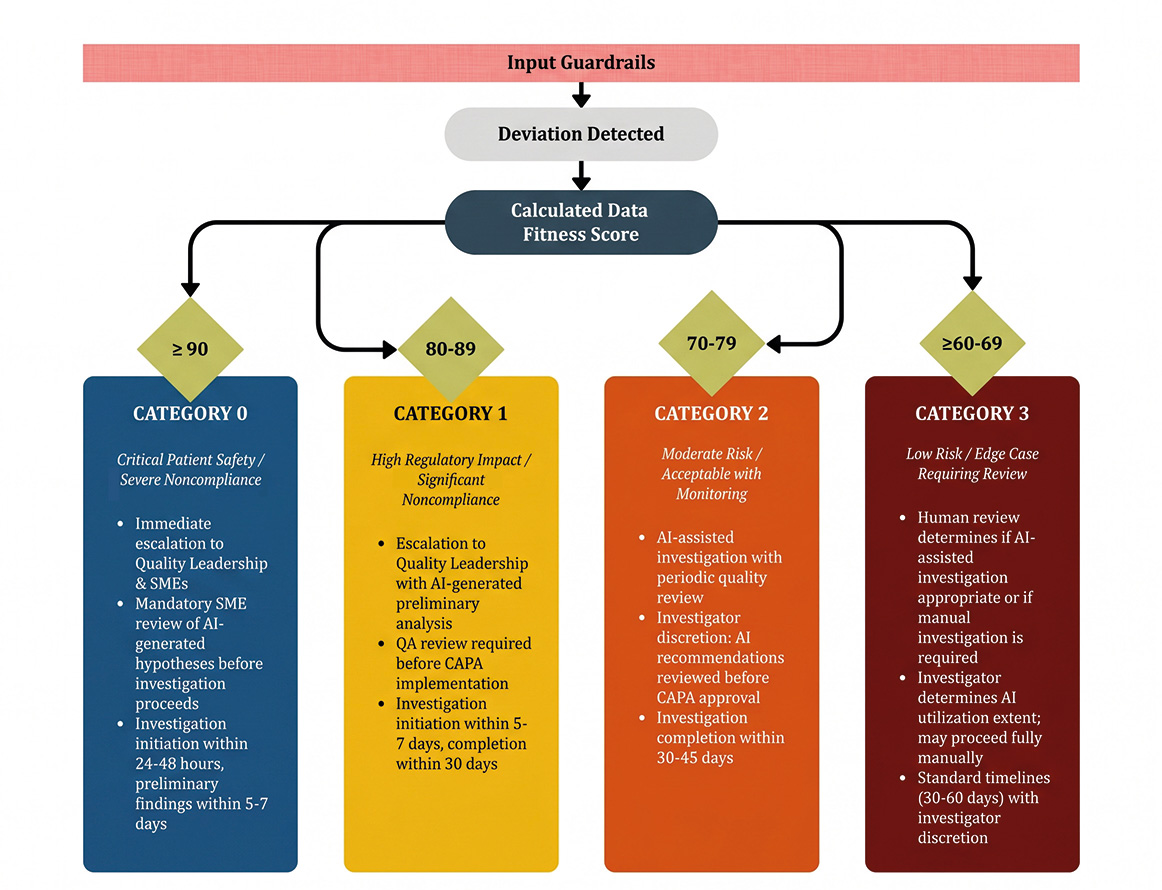

Figure 4: Input guardrail decision tree.


Input Guardrail Implementation in RCA and CAPA Workflow

When a deviation is reported, input guardrails execute the following sequence:

1. Deviation classification: LLM extracts deviation type, affected product or process, and severity indicators
2. Data source identification: Knowledge graph identifies relevant data sources (i.e., equipment logs, batch records, environmental monitoring, similar historical deviations)
3. Data fitness scoring: Automated assessment of each data source across four properties
4. Aggregate fitness calculation: Weighted average of all relevant data sources
5. Risk assessment: Calculate RPN based on severity, occurrence, and detection
6. Category determination: Route to Category 0–3 based on fitness score and RPN
7. Escalation or processing: Execute category-specific pathway (i.e., immediate escalation, AI-assisted with oversight, human review required, or block)

Consider the following example scenario. A visible particle contamination is detected in a sterile injectable batch during final inspection. This is classified as a critical deviation (i.e., sterility or patient safety concern). The data sources identified are fill line equipment logs, environmental monitoring (past 7 days), batch manufacturing record, similar historical deviations (past two years), stopper, or closure material certificates of analysis and personnel gowning records.

In this example, the data fitness scores were:

• Equipment logs: 95 (i.e., validated system, complete audit trail, calibrated sensors, recent data)
• Environmental monitoring: 88 (i.e., validated system, minor gaps in cleanroom recovery data)
• Batch record: 92 (i.e., complete, electronically signed, no deviations)
• Historical deviations: 78 (i.e., relevant but older cases from different equipment)
• Material certificates of analysis: 85 (i.e., complete but from new supplier with limited history = representativeness concern)
• Gowning records: 90 (i.e., complete electronic records)

The aggregate fitness score was then 88 (i.e., weighted average prioritizing recent equipment and environmental data). The risk assessment revealed it was a severity of 10 (patient safety), with an occurrence of 3 (rare, but has occurred), a detection of 2 (detected before release), and an RPN of 60. Based on the risk assessment, it was determined this was a Category 0 because there was critical patient safety regardless of RPN calculation (even though RPN suggests Category 1, severity alone triggers Category 0). The action required was immediate escalation to quality leadership and microbiology subject matter expert; AI pre-liminarily analyzes historical similar cases and environmental trending, but all hypotheses require SME validation before investigation proceeds.

This example illustrates how input guardrails prevent AI from autonomously driving critical quality decisions and still providing valuable analytical support to human experts.

Output Guardrails: Ensuring Safe AI Responses

Although input guardrails verify data quality before AI processing, output guardrails assess AI-generated responses before presenting them to users. These guardrails prevent unsafe outputs including hallucinations, inappropriate recommendations, confidential information disclosure, and regulatory noncompliance.

Output Safety Classification

Output guardrails classify each AI-generated response as either safe (appropriate for user display) or block (unsafe; requires intervention).

Safe classification criteria

AI responses are classified as safe when they meet all of the following:

• Factual accuracy: All claims are traceable to retrieved source documents (RAG citations valid)
• Professional tone: Language appropriate for GxP documentation and regulatory inspection
• Relevance: Response directly addresses the query without extraneous information
• Regulatory compliance: Recommendations align with applicable regulations (FDA, EU GMP, ICH guidelines) as verified by a rules-based system
• Explainability: Clear reasoning pathway from data to analysis to conclusion
• Confidence adequacy: AI confidence scores exceed minimum thresholds for the risk category
• No sensitive data: Response contains no proprietary formulations, confidential business information, or personal identifiable information beyond what is appropriate for the query context

Block classification triggers

AI responses are blocked and escalated when any of the following occur:

• Hallucination detection: Claims not supported by retrieved documents or contradicting validated data sources
• Harmful recommendations: Suggestions that would violate GMP, compromise product quality, or endanger patient safety (e.g., “skip sterility testing,” “extend beyond expiry”)
• Data leakage: Exposure of proprietary formulations, confidential supplier information, or personally identifiable information (PII)
• Offensive content: Inappropriate language, discriminatory statements, or unprofessional tone
• Irrelevant generation: Response substantially deviates from query intent
• Database dumping: Large-scale data extraction or raw database output without analytical context
• Low confidence with high risk: AI confidence below threshold for the deviation category (e.g., < 80% confidence for Category 0 or 1 deviations)
• Regulatory contradiction: Recommendations conflicting with mandatory requirements flagged by rules-based system

Output guardrail verification mechanisms (verified by human-in-the-loop)

There are multiple verification layers necessary for output guardrails.

Layer 1: Citation validation (RAG verification)

• Every factual claim must link to a retrieved source document
• Source documents must be validated (i.e., approved SOPs, closed investigations with quality assurance approval, published regulatory guidance, peer-reviewed literature)
• Claims without valid citations are flagged as potential hallucinations

Layer 2: Rules-based compliance check

• AI-generated CAPA recommendations are compared against regulatory requirements database
• Mandatory actions (e.g., requalification after equipment modification, validation protocol for process changes) are verified as included
• Prohibited actions are flagged if suggested

Layer 3: Sensitivity screening

• Natural language processing scans for confidential keywords (i.e., proprietary excipient names, supplier-specific information, formulation details beyond what’s appropriate for the query)
• PII detection (i.e., names, employee identifications beyond what’s contextually necessary)
• Classification markings (if organization uses “confidential,” “proprietary,” or “trade secret” labeling)

Layer 4: Confidence thresholding

AI confidence score must exceed category-specific minimums, which are given next. Responses below threshold are flagged for human review before display.

• Category 0: ≥ 90% confidence required
• Category 1: 85–89% confidence required
• Category 2: 75–84% confidence required
• Category 3: 70–74% confidence required

Layer 5: Toxicity and tone analysis

• Sentiment analysis ensures professional, neutral tone
• Perspective application programming interface or similar tools detect potentially offensive content
• Medical device- or pharma-specific tone guidelines verify appropriate language (e.g., avoiding absolute claims such as “guarantees safety” in favor of “data supports conclusion that.”)

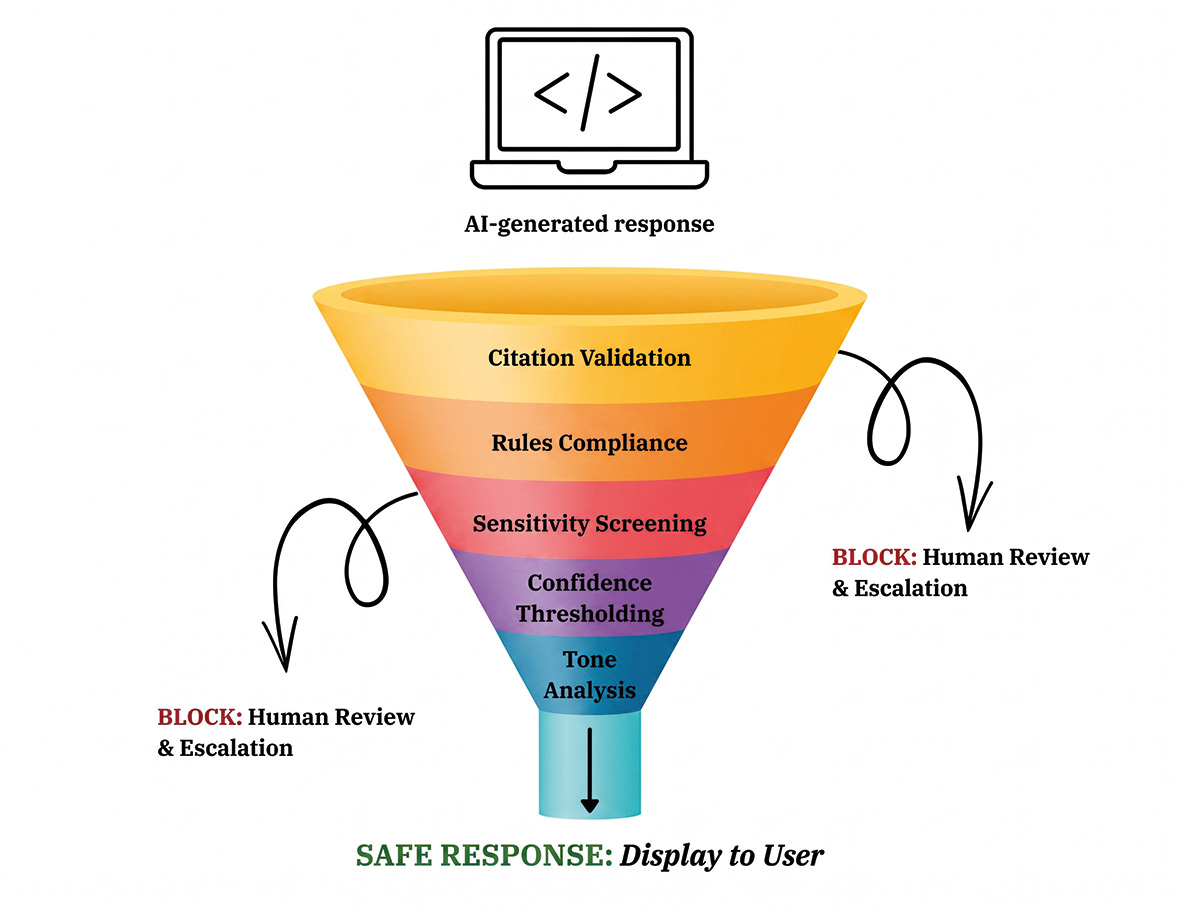

Figure 5: Flowchart of process when the AI-generated response is confirmed safe.


When the AI-generated response is confirmed safe when filtered through output guardrails, the display text (i.e., generated response) will be shared with the user (see Figure 5). If, however, the AI-generated response does not make it through the guardrail verification filter, it will be blocked and the human-in-the-loop will have to review and escalate if necessary.

Monitoring and Continuous Improvement of Guardrails

GAMP® AI principles emphasize the importance of ongoing monitoring and continuous validation throughout the AI system life cycle [7]. Guardrail performance must be tracked, audited, and refined based on operational experience. We would encourage industry users of AI tools to ensure that with specific continuous learning AI tools, that the systems are continuously revalidated and monitored for output drift, bias, and hallucinations, and also overall assessed for fitness for use.

Guardrail Performance Metrics

Organizations should monitor all of the following metrics to ensure adequate guardrail performance.

Input guardrail effectiveness

• False positive rate (appropriate data blocked)
• False negative rate (poor quality data allowed to process)
• Average data fitness scores by source system (identify systematic data quality issues)
• Category distribution (i.e., are most deviations being appropriately classified?)

Output guardrail effectiveness

• Safe vs. block classification distribution
• Human override rate (i.e., how often do reviewers disagree with guardrail assessments?)
• Hallucination detection accuracy (validated through human review sampling)
• User satisfaction scores (i.e., are guardrails too restrictive or appropriately protective?)

Investigation outcome quality

• Root-cause identification accuracy (comparing AI-assisted vs. actual root causes)
• CAPA effectiveness (i.e., do AI-assisted CAPAs prevent recurrence more effectively?)
• Investigation timeline reduction (maintaining quality)
• Regulatory inspection findings (i.e., any observations related to AI-generated investigations?)

Periodic Guardrail Review and Calibration

Guardrail thresholds and weights should undergo periodic review aligned with quality system procedures:

• Quarterly review: Assessment of guardrail performance metrics; adjustment of confidence thresholds if false positive or false negative rates exceed acceptable levels
• Annual review: Comprehensive evaluation aligned with standard operating procedure periodic review; update of data fitness property weights based on operational experience; incorporation of new regulatory guidance or GAMP® AI updates
• Event-driven review: Following regulatory inspections, significant deviations, or CAPA failures; triggered by systematic guardrail performance issues

All guardrail modifications should follow change control procedures, undergo quality assurance approval, and be validated through regression testing to ensure continued compliance.

Theoretical Implementation Roadmap

The technical capability to adopt AI systems exists. The critical question for life sciences organizations is not whether AI can perform RCA and CAPA functions, but whether it can do so reliably, compliantly, and sustainably. This section explores the possibility of utilizing a key industry guideline, such as ISPE’s GAMP® AI Guide as an example of a relevant framework.

Addressing the Validation Paradox

Traditional computerized system validation, as defined by ISPE GAMP^® 5 Guide: A Risk-Based Approach to Compliant GxP Computerized Systems (Second Edition),14 assumes deterministic behavior: given identical inputs, the system produces identical outputs. AI systems, particularly those incorporating machine learning, are fundamentally nondeterministic. Models retrained on new data may produce different predictions for the same input. LLMs may generate slightly different responses to identical queries due to temperature settings and stochastic sampling.

This creates a validation paradox: how do we validate systems whose outputs are not perfectly reproducible? Guardrails resolve the paradox through bounded nondeterminism. Instead of attempting to validate every possible AI output, guardrails establish validated boundaries within which AI systems can operate safely. We validate:

• The guardrail mechanisms themselves (i.e., input verification, output classification) as deterministic, testable components
• The boundaries (i.e., data fitness thresholds, confidence minimums, risk categories) as scientifically justified and risk-based
• The monitoring systems that detect when AI behavior approaches or exceeds boundaries
• The escalation procedures that engage human oversight when boundaries are approached

This approach aligns with GAMP^® AI guidance on risk-based validation:6 high-risk decisions (Category 0 or 1) have stringent guardrails and mandatory human oversight, at the same time low-risk decisions (Category 3) allow greater AI autonomy. The validation burden shifts from validating infinite AI outputs to validating finite guardrail controls—a tractable problem.

Building Trust Through Transparency and Explainability

Regulatory inspectors, quality professionals, and organizational leadership must trust AI systems to adopt them. Trust requires understanding: Why did the AI recommend this root cause? What data supported that CAPA effectiveness prediction? Guardrails institutionalize explainability.

Output guardrails mandate that every AI response include:

• Citations linking claims to source documents (RAG-enabled traceability)
• Reasoning pathways showing data → analysis → conclusion flow
• Confidence scores quantifying uncertainty
• Alternative hypotheses when confidence is moderate, showing AI considered multiple possibilities

This enforced transparency serves multiple purposes:

• Regulatory inspection readiness: Inspectors can trace AI reasoning; investigations are auditable
• Quality professional empowerment: Users understand AI recommendations and can critically evaluate them and maintain expertise, rather than deferring blindly to AI
• Continuous learning: Explainable outputs enable identification of AI errors, supporting model improvement
• Ethical accountability: Clear attribution of AI recommendations vs. human decisions

Preventing Automation Bias and Maintaining Human Expertise

A significant risk in AI execution is automation bias: the tendency for humans to over-rely on automated recommendations, accepting them uncritically even when incorrect.15 In pharmaceutical quality, where deviations can affect patient safety, automation bias could lead to missed root causes, inadequate CAPAs, or regulatory noncompliance. Guardrails counteract automation bias through structured oversight.

The risk-based categorization framework requires human oversight proportional to decision criticality:

• Category 0: AI recommendations are advisory only; SME review mandatory before action
• Category 1: QA review required; AI accelerates analysis but doesn’t replace judgment
• Category 2: Investigator discretion; AI assists but investigator owns decision
• Category 3: Human determines whether AI is applicable; can proceed manually if preferred

This structure maintains human expertise development. Junior investigators still conduct Category 2 and 3 investigations, learning root cause methodologies with AI assistance rather than AI replacement. Senior SMEs engage deeply with Category 0 and 1 cases in which their expertise is most critical. Quality professionals become AI-augmented experts, not AI-dependent operators.

Managing AI system drift and data shift

AI models can degrade over time because of data drift (input data distributions change as processes evolve) and concept drift (relationships between inputs and output change).16 In pharmaceutical manufacturing, process improvements, equipment upgrades, new materials, and regulatory changes continuously alter the environment in which AI systems operate. Guardrails provide early warning systems for drift.

Input guardrails monitor data fitness trends:

• Declining representativeness scores may indicate process changes not reflected in training data
• Decreasing relevance scores may suggest model assumptions no longer align with current operations
• Abundance issues may emerge as rare deviations become more common (or vice versa)

Output guardrails detect performance degradation:

• Increasing block rates may signal model generating inappropriate responses more frequently
• Declining confidence scores may signal model uncertainty increasing
• Rising human override rates suggest guardrail thresholds misaligned with operational needs

These metrics trigger retraining, model updates, or guardrail recalibration—enabling adaptive AI systems that evolve with the organization rather than becoming obsolete.

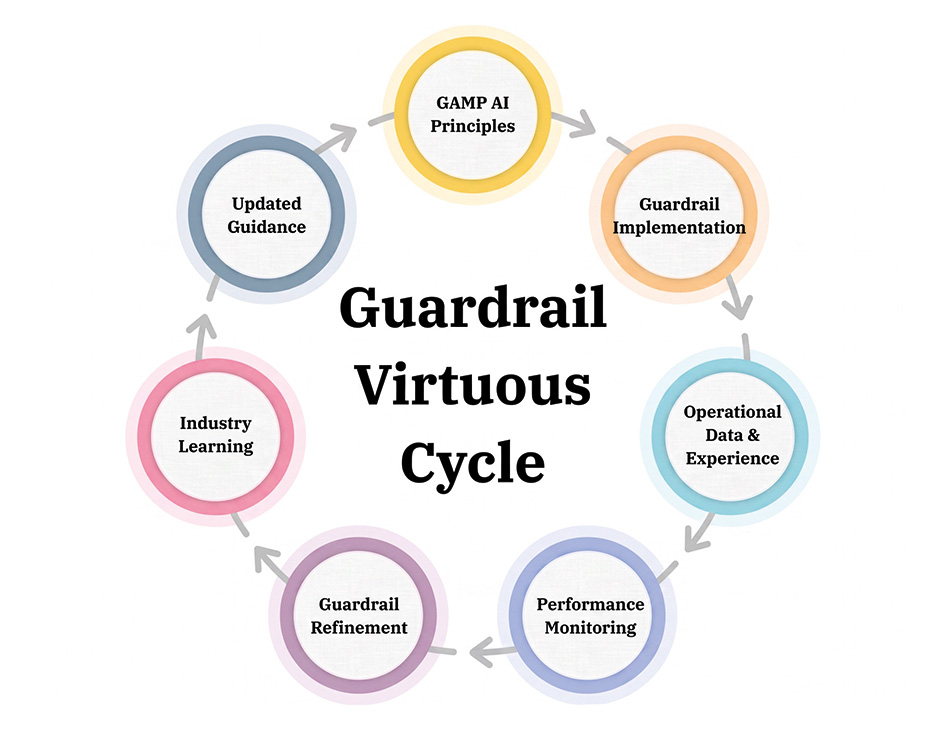

Figure 6: The guardrail virtuous cycle is a continuous improvement cycle, based on GAMP^® AI principles, providing an industry standardization feedback loop.


Enabling regulatory acceptance and industry standardization

Currently, no comprehensive regulatory framework governs AI in pharmaceutical quality management. Organizations adopting AI systems face uncertainty: Will regulators accept AI-generated investigations? What documentation is required? How should systems be validated? Guardrails provide a pathway to regulatory acceptance. By using framework from GAMP^® AI principles—the pharmaceutical industry’s consensus guidance developed with regulatory input—guardrail-based architectures demonstrate the following (see Figure 6).

First, alignment with established standards: GAMP^® is recognized globally; building on GAMP^® AI shows continuity with accepted practices. Second, they demonstrate a risk-based approach, as aligning with ICH Q9 demonstrates scientifically sound risk management. They show data integrity by authenticating FDA 21 CFR Part 11 compliance through input verification and audit trails. These architectures also demonstrate transparency (explainability and traceability address regulatory inspection needs) and ensure human oversight through mandatory reviews for critical decisions that address concerns about autonomous AI.

As more organizations adopt GAMP^® AI-aligned guardrails, industry practices converge. This convergence can inform future regulatory guidance, creating a positive feedback loop: Industry demonstrates feasibility, regulators observe effective practices, formal guidance emerges, industry refines implementations. Organizations implementing guardrail architectures now position themselves as leaders, potentially influencing regulatory framework development and simultaneously benefiting from early adoption advantages.

Future Directions: Evolving Guardrail Requirements

As AI capabilities advance and pharmaceutical organizations gain experience with AI-augmented quality systems, guardrail requirements will evolve. This section explores expected developments and their implications for guardrail architectures.

Adaptive guardrails and self-calibrating systems

Current guardrails use fixed thresholds determined through validation and periodic review. Future systems may implement adaptive guardrails that adjust thresholds based on operational performance, at the same time maintaining human oversight of adaptations.

For example, if an organization consistently finds that Category 2 deviations with data fitness scores of 75 to 80 produce high-quality investigations with excellent CAPA effectiveness, the system might recommend (with QA approval) lowering the Category 2 threshold from 70 to 68 to enable AI assistance for a broader range of cases. Conversely, if Category 3 investigations show high human override rates, the system might recommend raising thresholds or refining classification criteria. Such adaptations would follow change control procedures and require validation but could enable more efficient guardrail optimization than manual periodic reviews alone.

Federated learning and cross-site guardrail harmonization

Pharmaceutical companies operating multiple manufacturing sites face the challenge of maintaining consistent quality standards and accommodating site-specific differences. Federated learning—training AI models on aggregated data from multiple sites without sharing raw proprietary data17—offers opportunities to improve model robustness and protect confidentiality.

Guardrails play a critical role in federated approaches:

• Cross-site guardrail standardization: Organizations would have to ensure all sites apply consistent data fitness requirements and risk categorization criteria to enable meaningful model aggregation.
• Site-specific calibration: As core guardrail frameworks remain consistent, thresholds can be calibrated to site-specific risk profiles (e.g., sterile manufacturing sites may have more stringent Category 0 criteria than oral solid dose facilities).
• Collective learning from rare events: When a critical deviation occurs at one site, guardrail-verified learnings can propagate to other sites, improving collective quality management.

This approach could extend beyond single companies to industry consortia, enabling collective learning at the same time maintaining competitive confidentiality—provided there are robust guardrails to ensure data quality and prevent inappropriate data sharing.

Integration with real-time manufacturing and continuous verification

The pharmaceutical industry is gradually moving toward continuous manufacturing and real-time release testing.18 These paradigms generate continuous data streams and require rapid quality decisions. AI systems with appropriate guardrails could enable:

• Predictive quality management: Real-time process parameter analysis would detect drift before deviations occur, with guardrails ensuring alerts are based on validated models and reliable data.
• Automated process adjustments: Within preapproved operating ranges and subject to stringent output guardrails, AI systems might recommend (or in future, execute) process adjustments to maintain quality.
• Continuous CAPA effectiveness monitoring: Rather than periodic effectiveness checks, AI systems could continuously monitor whether CAPAs prevent recurrence, with guardrails triggering alerts when effectiveness declines.

These applications demand even more robust guardrails than batch-based manufacturing, as the pace of decision accelerates. Input guardrails must verify data quality in real time; output guardrails must assess recommendations within seconds, not hours. The fundamental framework remains applicable, but adoption requirements intensify.

Evolving regulatory landscape and guardrail requirements

The European Union AI Act5 establishes risk-based requirements for AI systems, with high-risk applications (including those affecting health and safety) subject to stringent obligations, including data governance, transparency, human oversight, and accuracy requirements. Although the act targets primarily medical devices and clinical applications, its principles may influence pharmaceutical manufacturing AI governance.

Future regulatory developments may mandate specific guardrail types. For example, regulations could require input verification, output validation, or specific explainability mechanisms. They may also establish minimum performance standards, where regulators might define minimum acceptable AI accuracy, precision, or recall rates for quality applications. Future regulatory developments may require third-party auditing; for example, independent assessment of guardrail effectiveness could become mandatory for high-risk AI systems. And finally, they may harmonize international requirements. As different jurisdictions develop AI regulations, international harmonization (similar to ICH for drug development) may emerge.

Organizations that apply robust guardrails now will be better positioned to adapt to regulatory requirements as they emerge. The GAMP^® AI-aligned approach provides a foundation that can accommodate future regulatory elaboration without fundamental redesign.

Conclusion

The integration of AI into pharmaceutical RCA and CAPA life-cycle management represents both tremendous opportunity and significant responsibility. AI systems can dramatically accelerate investigations, improve root-cause accuracy, and enhance CA-PA effectiveness—but only if applied with rigorous safeguards that ensure data quality, regulatory compliance, and human oversight.

This article has presented a framework for using ISPE GAMP^® Guide: Artificial Intelligence principles as input and output guardrails within hybrid AI architectures. These guardrails address the fundamental challenges of AI governance in GxP environments:

• Input guardrails ensure data fitness for purpose through systematic verification of reliability, relevance, representativeness, and abundance, at the same time installing risk-based categorization that aligns oversight requirements with deviation criticality
• Output guardrails prevent unsafe Artificial Intelligent Unit responses through multilayered verification of factual accuracy, regulatory compliance, confidentiality protection, and professional tone
• Monitoring and continuous improvement frameworks ensure guardrails adapt to operational experience and evolving requirements

By establishing validated boundaries within which AI systems can operate safely rather than attempting to validate infinite possible outputs, guardrails resolve the validation paradox inherent in nondeterministic AI systems. By enforcing explainability and mandating human oversight for high-risk decisions, guardrails build trust and prevent automation bias. By providing early warning systems for model drift and performance degradation, guardrails enable sustainable AI adoptions that remain effective as organizations evolve.

Perhaps most importantly, by grounding guardrail design in GAMP^® AI principles—the pharmaceutical industry’s consensus guidance—this framework provides a pathway toward regulatory acceptance and industry standardization in an area where formal regulatory requirements do not yet exist.

The pharmaceutical industry cannot afford to wait for comprehensive AI regulations before adopting AI-augmented quality systems. Patient safety demands continuous improvement in quality management, and competitive pressures reward operational efficiency. Organizations that adopt principled, guardrail-protected AI systems now will lead the industry in quality performance and establish practices that inform future regulatory frameworks.

The path forward requires collaboration: AI developers and pharmaceutical quality professionals must work together to refine guardrail mechanisms; industry consortia should share learnings on effective practices; regulatory authorities should engage with industry to understand what governance approaches prove effective in practice.

Through this collaboration, grounded in the foundational principles GAMP^® AI provides, the pharmaceutical industry can realize AI’s transformative potential while upholding its fundamental commitment to product quality and patient safety. Pharmaceutical quality management’s future is intelligent, adaptive, and transparent—with guardrails ensuring it remains safe, compliant, and worthy of the trust patients place in our industry.
