Automated Cross-Grade Material Transfer – A Perspective – Part I
1. Introduction
Automation is rapidly transforming pharmaceutical manufacturing and intralogistics. Yet one area remains largely manual: the transfer of materials between cleanroom zones with different good manufacturing practice (GMP) classifications.
This two-part series examines the current state of automated cross-grade material transfer. It highlights key challenges, recent technological advances, and presents practical examples that support the transition from manual and semi-automated processes to fully automated, GMP compliant intralogistics systems in pharmaceutical manufacturing.
Part I introduces the fundamentals, including cleanroom intralogistics, the role of material airlocks, and the practical limitations that still prevent fully automated solutions.
In this context, the term material transfer refers broadly to the movement of items from uncontrolled or controlled areas into classified environments, as well as transfers between cleanroom zones with different GMP grades. This includes, but is not limited to, materials, equipment, tools, components, and ancillary items.
2. Problem Statement
Pharmaceutical manufacturing environments require strict segregation between cleanroom zones with different GMP classifications to prevent contamination. Traditionally, material transfers between these zones are performed manually, following validated procedures that ensure compliance with contamination control strategies (CCS). However, increasing pressure from industry-wide labor shortages, rising operational costs, and the demand for higher efficiency is driving interest in automation. Automated and robotized solutions offer the potential to optimize full-time equivalent allocation, reduce manual handling, and improve contamination control and process consistency. In addition, automation and robotization enhance quality through improved traceability, reproducibility, and data integrity, supporting regulatory compliance.
Automation may also reduce the physical footprint of cleanroom infrastructure. Unlike humans, robots require minimal space to operate, allowing smaller, purpose-built airlocks sized to the largest transferable item.
Despite the benefits, significant challenges remain – particularly in enabling automated systems to perform validated decontamination processes while maintaining GMP compliance.
2.1 Intralogistics in Pharmaceutical Manufacturing, Supply, and Quality Operations
Intralogistics is a crucial support function that enables the efficient movement of materials between different areas within a facility. In pharmaceutical manufacturing, this flow must comply with stringent GMP requirements, which define multiple cleanroom classifications.

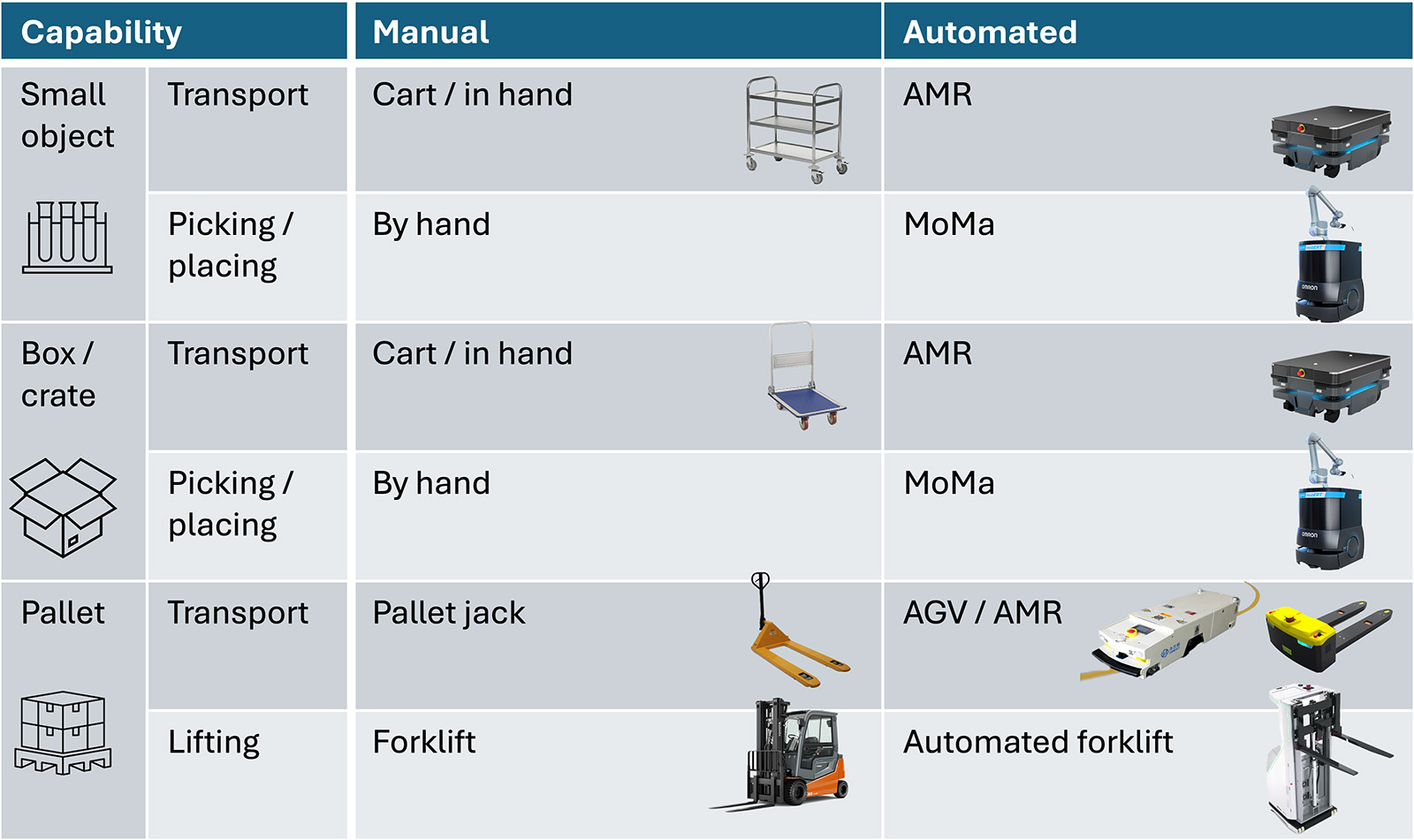

Automation is playing a growing role in intralogistics, with technologies such as conveyors and autonomous mobile robots (AMRs) being deployed across production and laboratory settings. As illustrated in Figure 1, materials are handled in various formats—from full pallets transported by (automated) forklifts, to boxes and crates moved by carts or mobile robots, and even individual laboratory samples carried manually or via robotic systems such as mobile manipulators.
Figure 1: Types of mobile material handling equipment
2.2 Material Airlocks
To transfer materials between cleanroom zones with different GMP grades, material airlocks (MALs) are used. These airlocks serve as physical and procedural barriers that preserve the segregation between cleanliness levels and prevent cross-contamination. A key function of the MAL is to maintain a pressure cascade, with higher pressure on the cleaner side and lower pressure on the less clean side. This pressure cascade must always remain stable to ensure the correct direction of the airflow and thus the integrity of the particle and microbiological containment.
Whereas personnel airlocks facilitate gowning and entry of individuals into higher-grade areas, material airlocks are designed specifically for the controlled transfer of goods. As part of this process, decontamination of both the material and its transport vehicle is required, in accordance with procedures such as cleaning and disinfection, cleaning validation, and material transfer.
Decontamination serves two primary purposes:
- Cleaning: The removal of visible and microscopic solid particles (e.g., dust) from object surfaces
- Disinfection/Bio-decontamination: The reduction of bioburden by eliminating or inactivating microorganisms present on surfaces.
Effective decontamination is essential to minimize the risk of introducing contaminants into critical manufacturing environments, thereby safeguarding product integrity and, ultimately, patient safety.
2.3 Limitations of Automation in Cleanroom Transitions
Automated material handling technologies—such as AMRs, mobile manipulators, and advanced fleet management systems are advancing rapidly and are increasingly being integrated into pharmaceutical operations. However, despite these developments, the seamless transfer of materials between cleanroom zones with differing GMP classifications remains a significant challenge.
While mobile robots and conveyors can technically pass through automated doors or hatches, most mobile systems cannot autonomously undergo validated decontamination processes needed for cleanroom grade transitions. The core limitation lies not in navigation or transport, but in reliably executing the decontamination process within the material airlock both for the mobile systems themselves and for the materials they are transporting. Additional concerns may arise in connection to the cleanroom-compatibility of the automation equipment or robotics, and should be considered during design and risk assessment. Any automation or robotics solution introduced in an airlock must comply with the requirements of the cleaner side.
To enable fully automated material transfer across cleanroom grades, the decontamination step must be automated in a way that meets regulatory expectations for effectiveness, traceability, and reproducibility—without compromising containment or GMP compliance.
3. Current State: Manual Material Transfer
Manual material transfer remains the industry standard for cleanroom transitions in GMP regulated pharmaceutical environments. These procedures are well-defined, fully validated, and widely accepted by regulatory bodies due to their proven effectiveness and controllability.
Manual decontamination involves trained personnel performing physical wiping or spraying of material surfaces, often following detailed standard operating procedures tailored to specific cleanroom grade transitions. In addition to surface decontamination, many transfer concepts rely on aseptic unpacking or unwrapping steps, where outer packaging layers are removed at defined transition points to prevent the introduction of contamination into higher-grade areas. In this context, fiber-based materials such as cardboard or corrugated boxes are generally not permitted beyond lower-grade or non-classified areas, as they are particle-shedding, difficult to clean, and incompatible with GMP cleanroom requirements.
Material transfer procedures vary depending on the specific cleanroom transition. For example, in transfers from controlled non-classified areas to Grade D cleanrooms, materials are commonly moved on pallets without depalletization. In such cases, only the accessible outer surfaces of boxes may be wiped, while pallet undersides are frequently excluded from cleaning. Alternatively, materials may be progressively unwrapped, with secondary or tertiary packaging removed prior to entry into the cleanroom, thereby reducing the need for extensive wiping of external surfaces. Where cardboard shipping boxes are used in upstream logistics, they must be removed before cleanroom entry and replaced by GMP compliant containers (e.g., plastic totes or stainless-steel bins). Wooden pallets may also need to be exchanged for GMP-compliant alternatives, such as plastic or stainless-steel versions, to minimize particulate shedding, and eliminate sources of microbial contamination and improve cleanability.
Despite their effectiveness, manual processes are inherently labor-intensive, subject to human variability, and difficult to scale in high-throughput environments. These limitations are key drivers for exploring automation, although replicating the nuanced actions of trained personnel, especially during decontamination, remains a significant technical and regulatory challenge.
While automation offers promising benefits such as improved consistency, traceability, and reduced contamination risk its implementation requires rigorous validation and comprehensive change control under GMP. As a result, new technologies often face higher regulatory expectations compared to their manual counterparts, which have the advantage of operational familiarity and a strong historical compliance track record.
4. Interim Solutions: Semi-Automated Material Transfer
Given today’s technological and regulatory landscape, only semi-automated material transfer solutions are feasible in GMP cleanroom environments. Let us take the example of transporting individual boxes or crates: in such scenarios, an automated material handling system—such as an AMR—would deliver the material to the lower-grade (less clean) side of the material airlock. At this point, an automated handover occurs, and the material is placed onto an intermediary conveyor system or transfer platform.
The conveyor then moves the material through an automated hatch or door into the airlock, where manual decontamination is performed. This typically involves the application of a disinfectant via spraying and wiping of external surfaces of the packaging. The material is generally not opened or disassembled during this process.
Once decontaminated, the material is either placed onto a downstream conveyor or handed off to another mobile robot for delivery to the higher-grade cleanroom zone. Alternatively, manual retrieval may occur on the clean side of the airlock, depending on the specific facility setup and material flow design.
5. The Path Forward
Manual material transfer procedures have proven reliable and remain the dominant approach in GMP-regulated pharmaceutical facilities. However, their dependence on human intervention introduces variability, limits scalability, and constrains the broader adoption of automation in cleanroom intralogistics.
Semi-automated approaches combining mobile robots, conveyors, and manual decontamination steps represent an important transitional stage. Yet the central challenge remains unresolved: enabling automated systems to perform validated cleaning and disinfection processes while maintaining full GMP compliance.
In Part II of this series, we will explore emerging technologies and industry initiatives that aim to overcome this barrier. From cleanroom-compatible autonomous mobile robots to automated decontamination concepts such as ultraviolet disinfection, air showers, and robotic wiping, the next article examines the innovations that could enable fully automated material transfer across cleanroom grades in the future.
